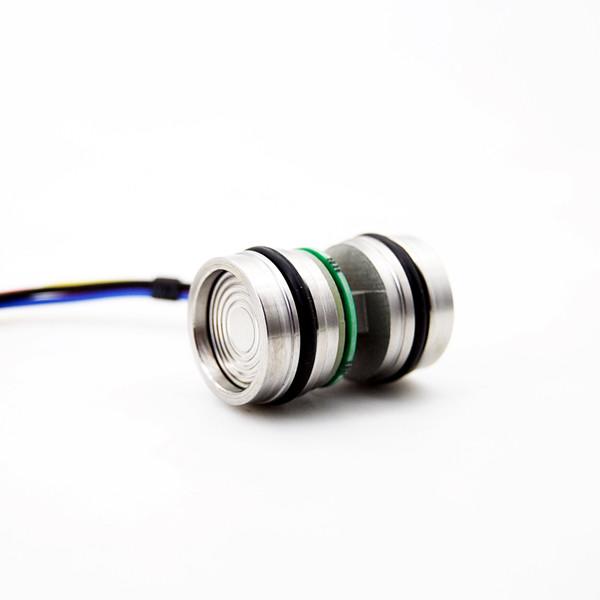

19mm Pressure Sensor Core 4mA-20mA Differential Pressure Cell

Product Categories

Atech sensor Co.,Ltd

Contact Now

Name: 19mm Pressure Sensor Core 4mA20mA Differential Pressure Cell
Brand: Atech sensor
Price: 1 USD

Brand Name : Atech sensor

Model Number : PS19

Certification : CE Roth

Place of Origin : China

MOQ : 10

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 10000pcs per month

Packaging Details : carton pack

Name : Differential Pressure Cell

diremeter : 19mm

output : 4-20mA

material : 316 stainless stell

use for : pressure sensor ,level sensor

Type : Pressure Sensor Core

Contact Now

19mm Pressure Sensor Core 4mA-20mA Differential Pressure Cell

Application of Pressure Sensor Core

Industrial process control
Gas, liquid pressure measurement
Differential pressure measurement
Venturi and vortex flowmeters

Speifications of Pressure Sensor Core

Pressure medium	gas liquid compatible to stainless steel
Pressure ranges	10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Pressure type	gauge (G), absolute (A), sealed gauge (S)
Overload pressure	300%F.S.( 70kPa) \|200%F.S.( 25MPa) \|150%F.S.( 25MPa)
Output signal	Zero Output 2mV 100mV (typical) 60mV (for 10kPa) \|
Accuracy	0.25%FS (standard)
Zero offset	≤±2mV
Long term stability	<0.2%FS/year
Excitation	1.5mA (typical) \|5VDC \| 10VDC
Compensated Temp.	- 10°c ~+70°c
Operating Temp.	-40~+125°c
Storage Temp.	-40~+125°c
Zero Temp. Coefficient	0.02%F.S./ °c ( 100kpa) \| 0.03%F.S. /°c (<100kpa)
Span Temp. Coefficient	0.02%F.S./ °c ( 100kpa) \| 0.03%F.S. /°c (<100kpa)
Bridge Resistance	Min.	Max.	Unit
	2600	5500	ohm
Vibration	20g (20— 5000HZ)
Response time	≤1ms
Electrical connection	6-pin or 4-wire
Material of membrane	316L
Material of housing	316L
Sealing	fluoro-rubber sealing ring
Filled oil	silicon oil, or olive oil (hygienism)
Wire	gold-plated kovar pins, or silicon rubber shielded flexible wires
Net weight	28g

19mm Pressure Sensor Core 4mA-20mA Differential Pressure Cell
